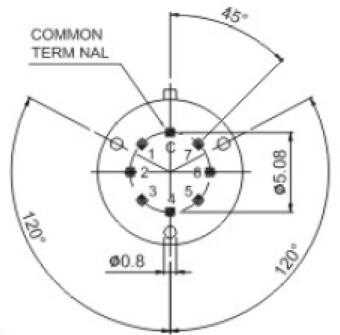

• POLE -POSITION ：1POLE,2 POSITION-8 POSITION
• CONTACT RATING ：0.5A 24V DC: 0.2A 48V DC
2Ωmax.1.5V DC; 100 mA
• CONTACT RESISTANCE ：by Method of Voltage DROP
• INSULATION RESISTANCE ：100 MQ min. 500V DC
• DIELECTRIC STRENGTH ：Breakdown is not Allowable ;
500VAC for 1 Minute
• OPERATING FORCE ：400土250 gf.cm；
230土100 gf.cm
• OPERATING LIFE ：2,000 cycles
• OPERATING TEMPERATURE RANGE： -20°C-70°C
|
 |
   |
| Part Number | Pole-Position | Contact Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating Force | Operating Temperature | PDF下載 |
|---|---|---|---|---|---|---|---|---|
| RMR | 1POLE , 2 POSITION~8 POSITION are Available | 0.5A 24V DC ;0.2A 48V DC;2Qmax.1.5VDC;100mA | by Method of Voltage DROP | 100MΩ min. 500 VDC | Breakdown is not Allowable;500VAC for 1 Minute | 400±250 gf.cm;230±1100 gf.cm | -20℃~ 70℃ | 暫無 |
