The push button switch, also known as the control button, is a low-voltage electrical appliance that is manually and generally automatically reset. The button is usually used to issue a start or stop command in the circuit to control the on and off of the electrical coil current of the electromagnetic starter, contactor, relay, and the like.

The push button switch is a kind of electric device that is used to switch on and off the small current circuit when the action is released. Generally used in control circuits with AC and DC voltages below 440V and currents less than 5A.

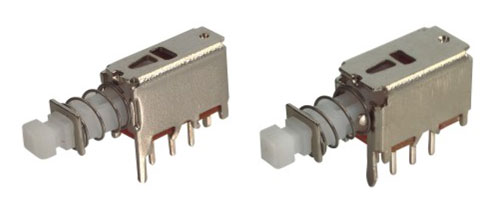

Push_Button Switches R0198A

• Pole-Position：1P2T,2P2T,Momentary
and Lock Type are available

• Contact Rating：30VDC,0.3A

• Contact Resistance：30mΩ Max.1.5VDC;100mA,
By Method of Voltage DROP

• Insulation Resistance：100MΩ Min,500VDC

• Dielectric Strength：Breakdown is not Allowable;
500VAC for 1 minute

• Operation Force：1P2P-200±100gf;
2P2T-250±100gf

• Operation Life：10,000 cycles

• Operation Temperation：-20℃ ~70℃

• Total Travel：2.5±0.3mm

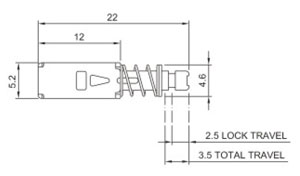

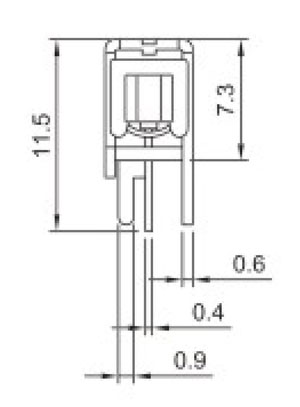

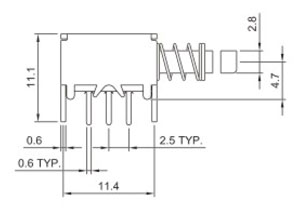

Push_Button Switches R0198A Structure Diagram

Part Number	Contact Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operation Force	Operation Life	Operation Temp.	Total Travel	Download
R0198A-B1N	30VDC,0.3A	30mΩ Max.1.5VDC;100mA,By Method of Voltage DROP	100MΩ Min,500VDC	Breakdown is not Allowable;500VAC for 1 minute	1P2P-200±100gf; 2P2T-250±100gf	10,000 cycles	-20℃ ~70℃	2.5±0.3mm	NULL
R0198A-B2N	30VDC,0.3A	30mΩ Max.1.5VDC;100mA,By Method of Voltage DROP	100MΩ Min,500VDC	Breakdown is not Allowable;500VAC for 1 minute	1P2P-200±100gf; 2P2T-250±100gf	10,000 cycles	-20℃ ~70℃	2.5±0.3mm	NULL
